Navigation:  Working With Beam Calculations > Steel Composite Beam Calculations > Composite Change Monitoring

Steel Composite beam calculations are subject to all of the same change monitoring and warning considerations used for all other beam types (see Monitoring and Change Warnings ).

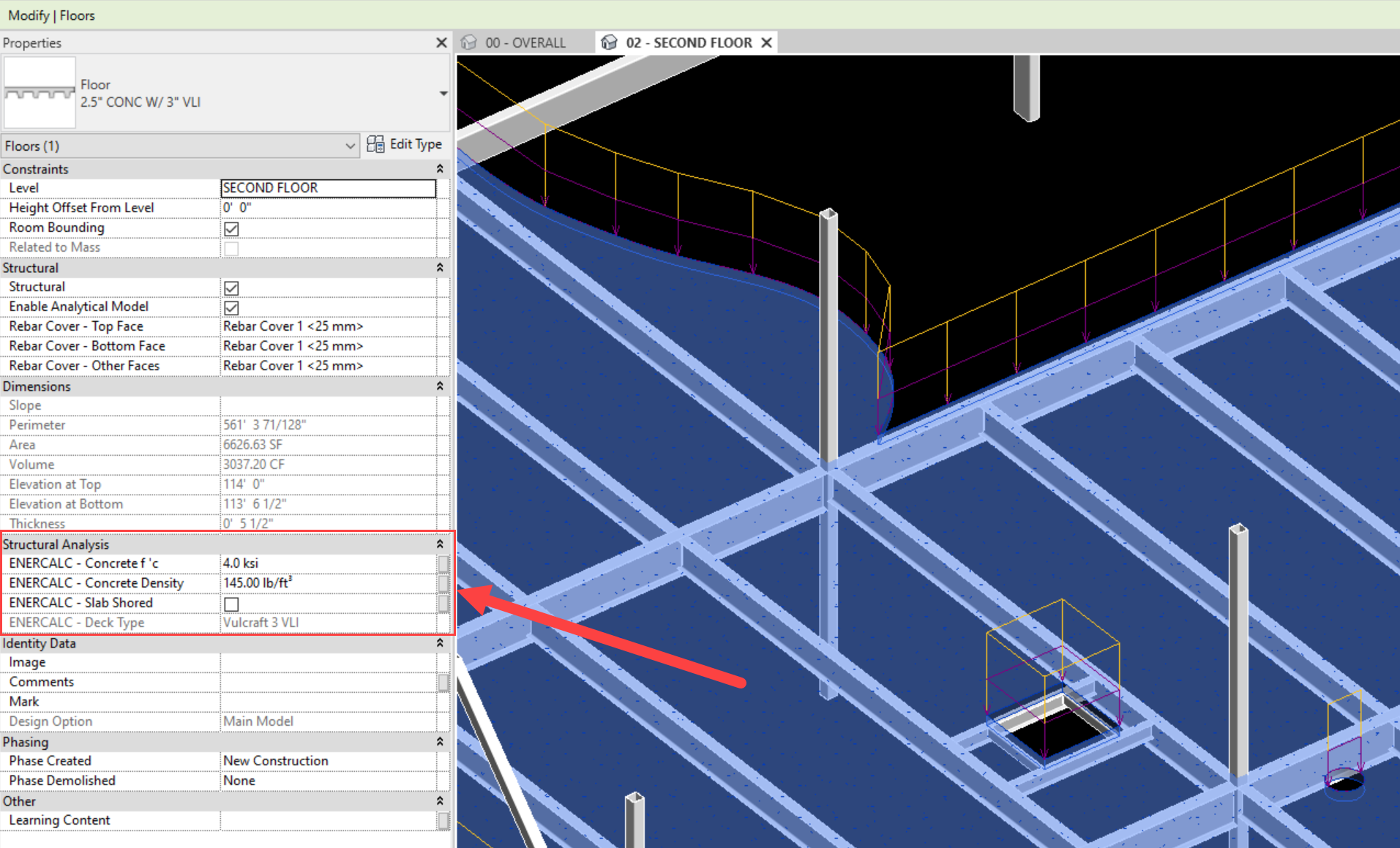

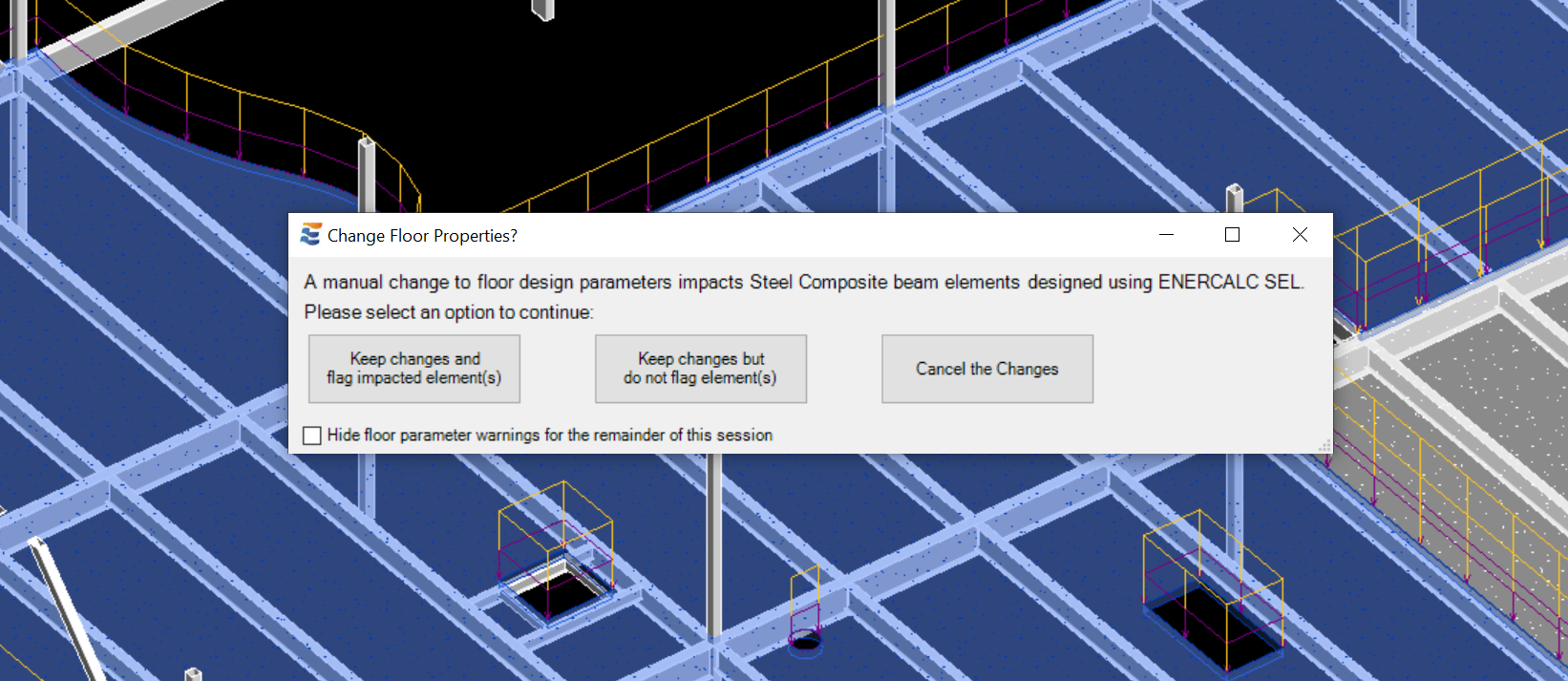

In addition to the standard beam change warnings, Steel Composite beams are also subject to warnings if slab parameters in the Revit model are modified. If any existing Steel Composite beam calculations in the model were influenced by the affected slab, the user will be presented with a warning.

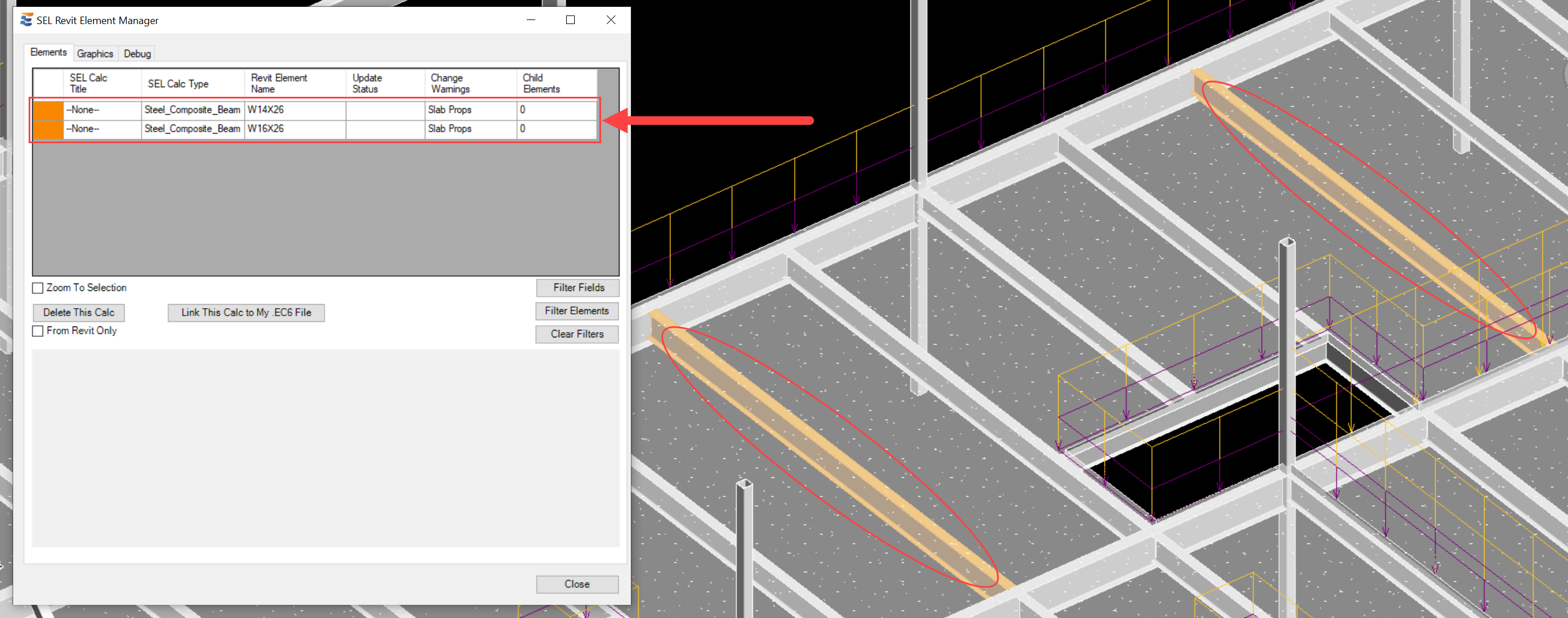

If the user chooses to keep the changes and flag the impacted elements, then each Steel Composite beam calculation influenced by the slab will be marked with a change warning.
