Navigation:  Working With Beam Calculations > Beam Loads > Redundant Area Load Cases

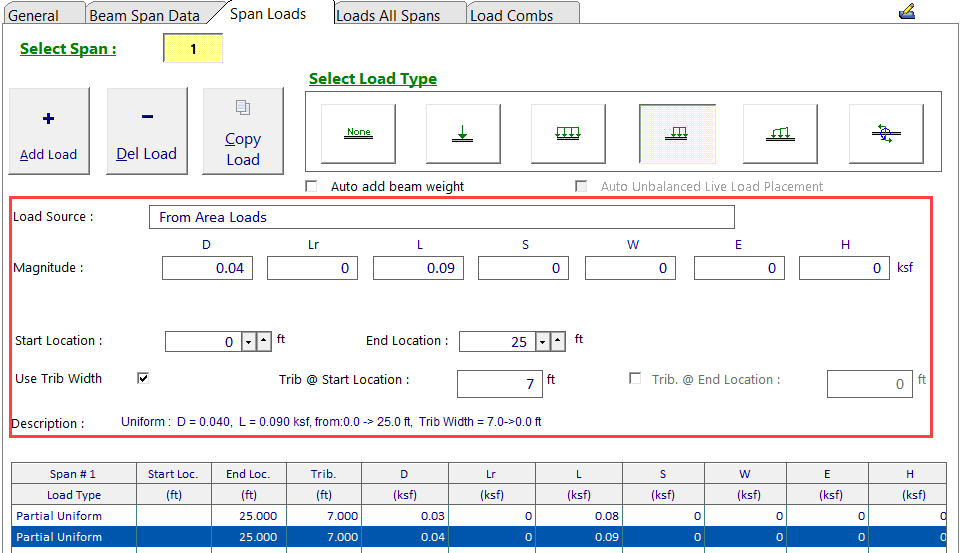

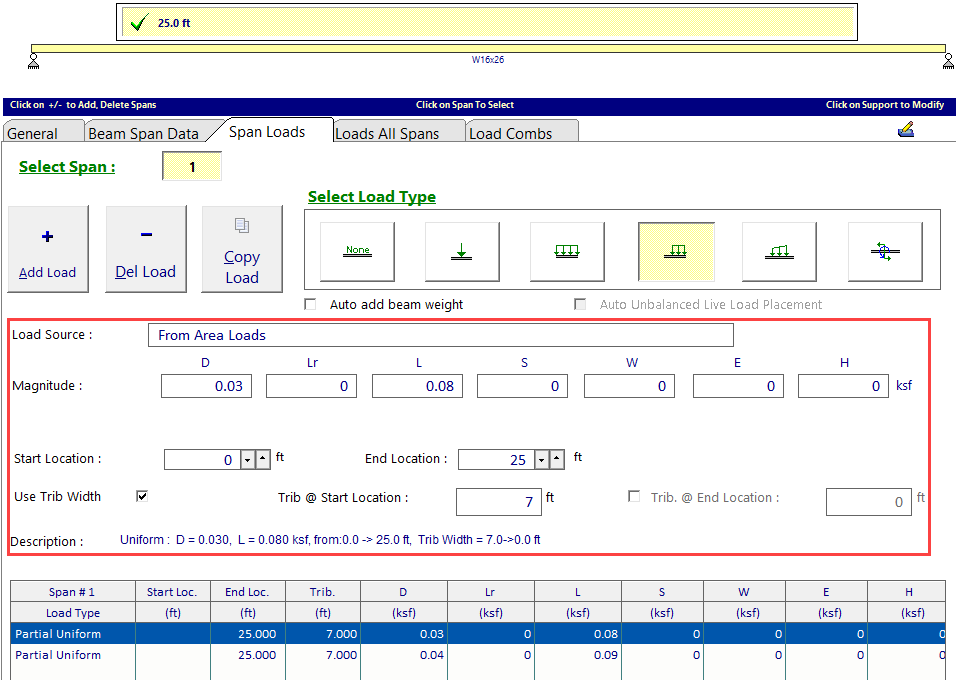

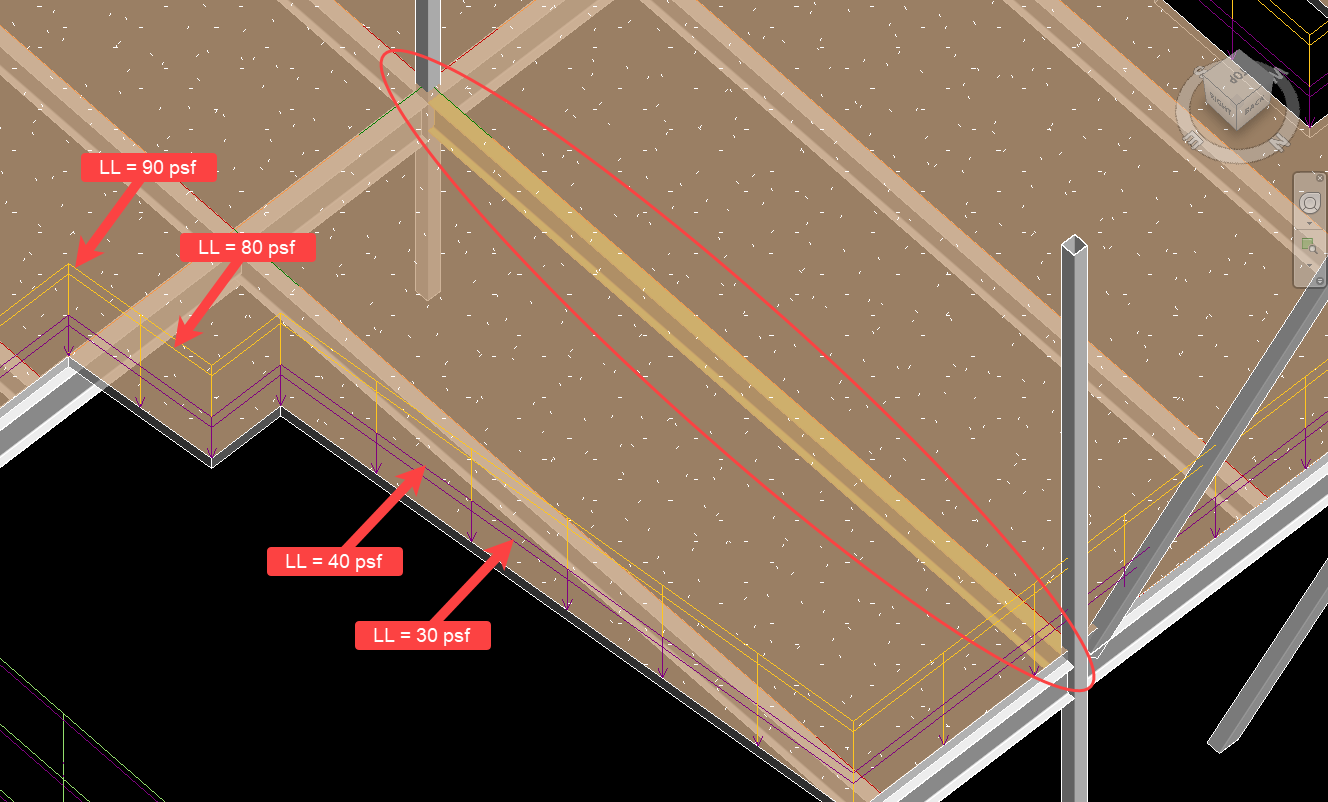

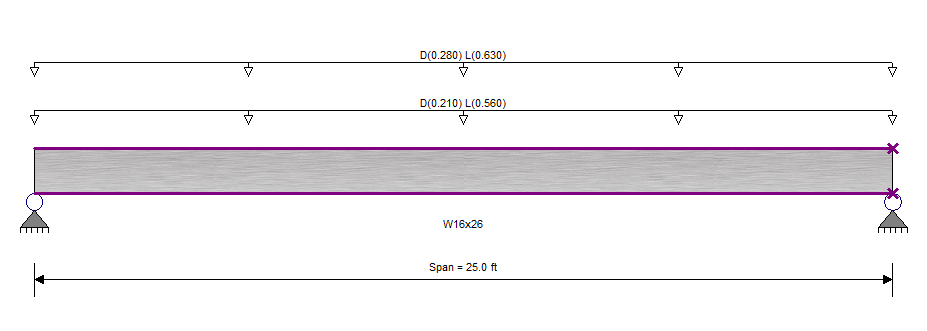

ENERCALC for Revit permits users to load a given floor with more than one area load of a particular case if the need arises.  In such cases, the resulting linear loads in the ENERCALC SEL interface will populate in the “Span Loads” tab.  Note that capturing this behavior requires that the beam be launched with a “Complete Contour” tributary width sampling mode.
