Objective

To verify the behavior of the rotational spring



Problem Description

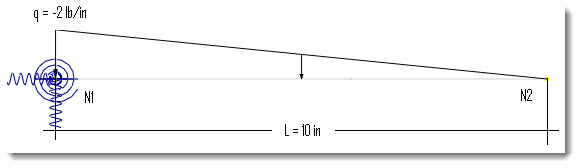

A 10-inch long cantilever beam is subjected to a triangular linear load of q = 2 lb/in.



Material properties: E = 2.9e7 psi, ν = 0.3



Section properties: Ix = 1000 in4, Az = 10 in2



Boundary condition: rotational spring constant Koz = 1e4 lb-in/rad, Dx and Dy fixed.





Finite Element Model

1 beam element

Assign large spring constants to Kx, Ky to represent fixed DOFs Dx, Dy

Model type: 2D Frame



Results

The rotational displacement Doz at N1 and vertical displacement Dy at N2 may be calculated as:

@N1: rad



@N2, in

Units: displacement – in; rotation - rad



Comments

The results given by ENERCALC 3D are identical to the theoretical values.



The displacements due to beam strains are negligible.
