Navigation:  Working With Beam Calculations > Beam Loads > Live Load Reduction > Reduced Loads in SEL – Point Loads

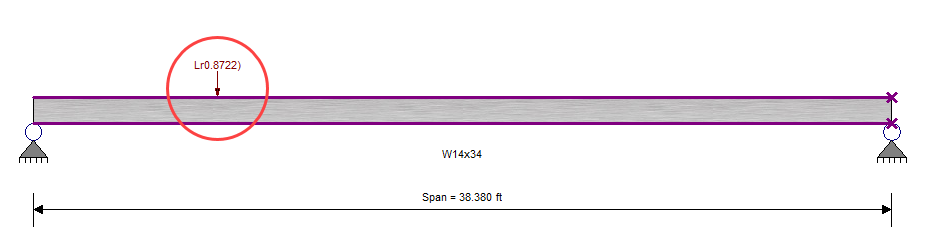

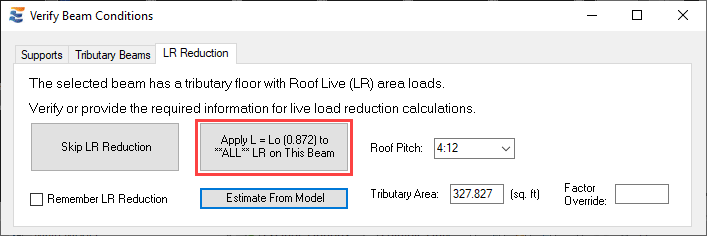

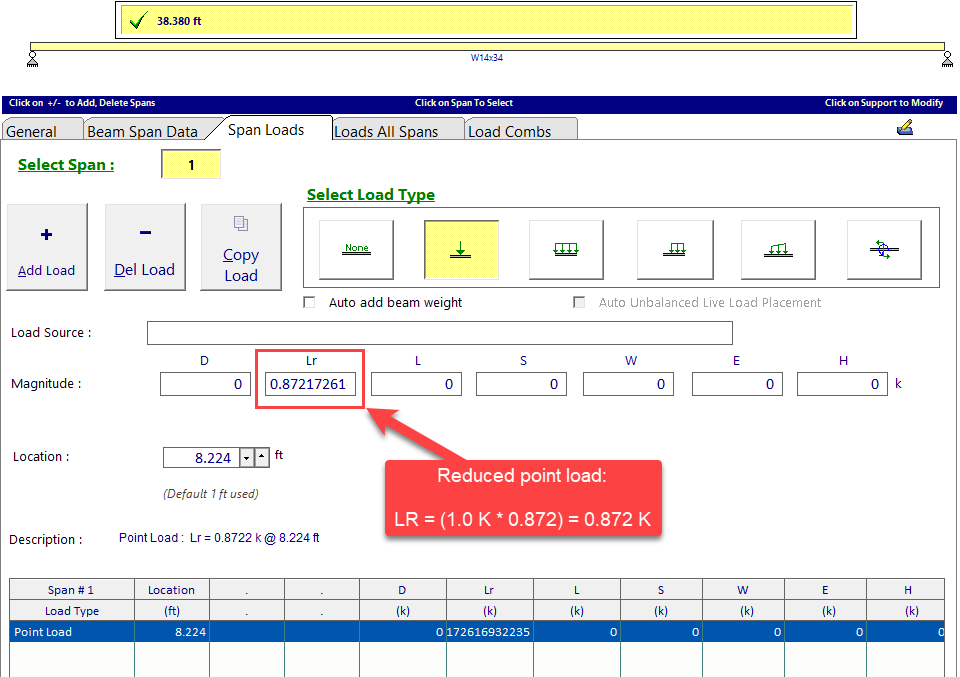

Once LL and LR reduction factors have been set and the beam calculation is launched, the factors will be applied to all applicable loads found on the beam.  These loads will populate in the ENERCALC SEL interface with reduced magnitudes.

NOTE:  Reduction factors will be applied to ALL LL or LR loads present on the beam.  This reduction is applied uniformly to all three Revit load types (point, linear, and area), as well as “Load-Linked” reaction forces.  Reduction is applied regardless of whether the forces are populated in the “Span Loads” or “Loads All Spans” tabs. The design professional is responsible for verifying that reduction of all loads is appropriate for the design.
