Navigation:  Working With Beam Calculations > Recalculation Tools

NOTE:  At this time, the recalc tools provided in ENERCALC for Revit are ONLY for triggering bulk updates to existing calculations that were previously created and verified via manual interaction by the design professional.  No tools are provided for fully autonomous generation of component design calculations.

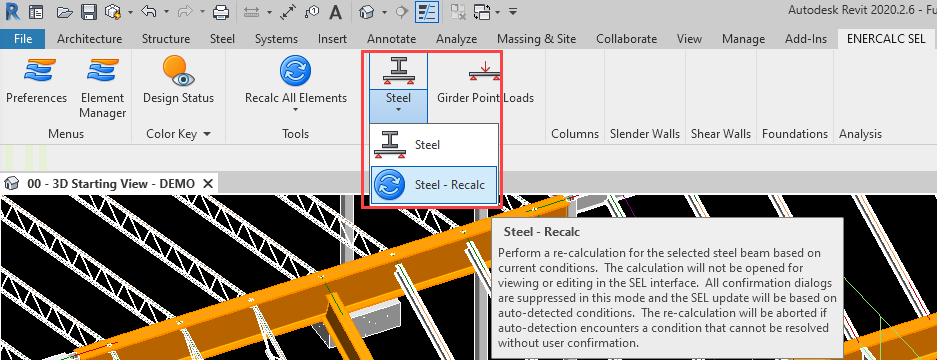

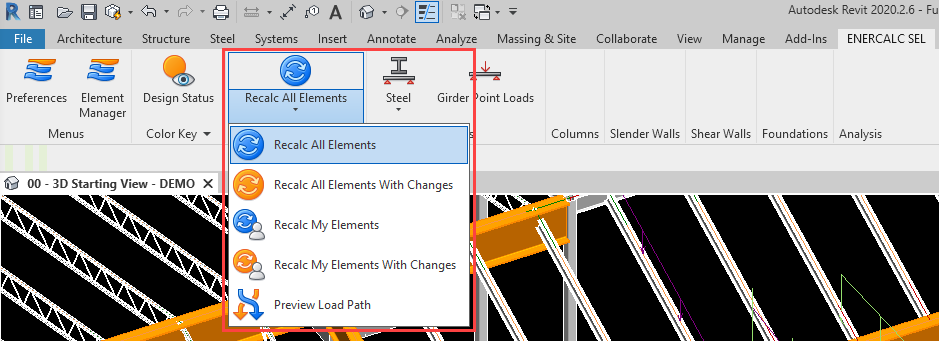

The bulk recalculation tools on the ribbon bar were introduced and briefly discussed in “Recalc Tools”.  This section will discuss recalculation in more detail specifically as it relates to beam calculations.  Beams may be recalculated either by the bulk tools, or by the single-element recalc found under the primary launch control for the beam type of interest.  A recalculation refreshes the analysis of a beam based on the current geometry information sent from the Revit model, without opening the complete calculation for viewing in the ENERCALC SEL interface.

The defining feature of a recalculation operation is that it does not prompt the user for any form of approval or other decisions while in progress.  This means that the data used to construct the ENERCALC SEL calculation are obtained only via auto-detection or information stored during previous launches of the calculation.

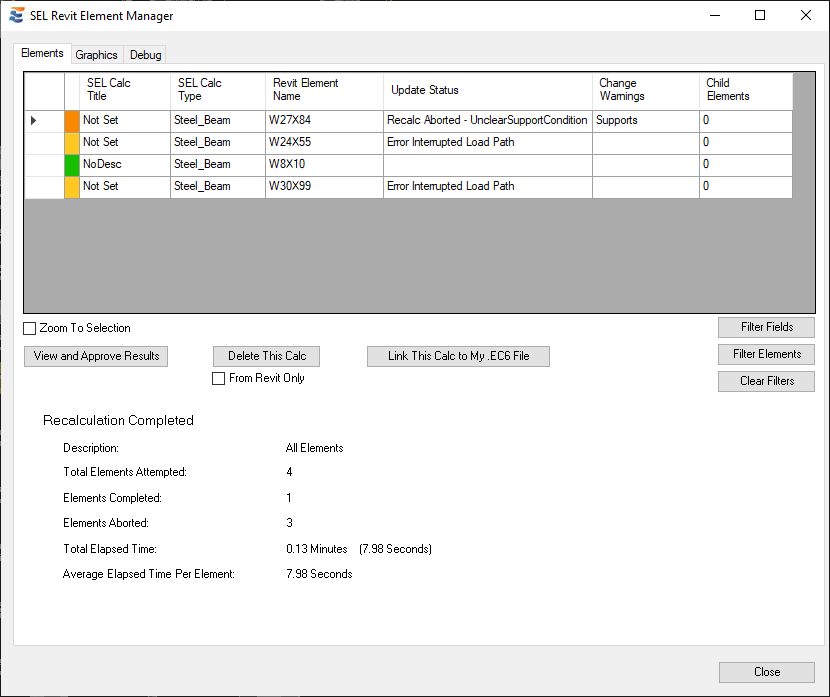

When launching a beam recalculation, stored information is given first priority.  This means that if supports or tributary beams were stored using the “Remember” checkbox during a previous launch, then these will be used during the calculation launch.  If stored supports or tributaries fail the error checking steps, the recalc will be halted, or in the case of a bulk recalc, the specific element with errors will be skipped and the recalc will proceed to the next element in the queue.  If stored data is not available, then the recalc will be performed using auto-detected supports and auto-detected tributaries.  If the results of this detection process diverge from the data used during the previous launch, then the recalc will be halted, or in the case of a bulk recalc, the specific element with errors will be skipped and the recalc will proceed to the next element in the queue.  If any element in the bulk recalculation queue has been skipped due to an error or ambiguous condition, all “downstream” elements in the load path found to be dependent on the skipped element will also be skipped to prevent erroneous result from “Load-Linked” elements.  These elements will be flagged with the status “Error Interrupted Load Path”.
