Navigation:  Working With Beam Calculations > Beam Loads > Modifying Loads from the SEL Interface > Linear Loads

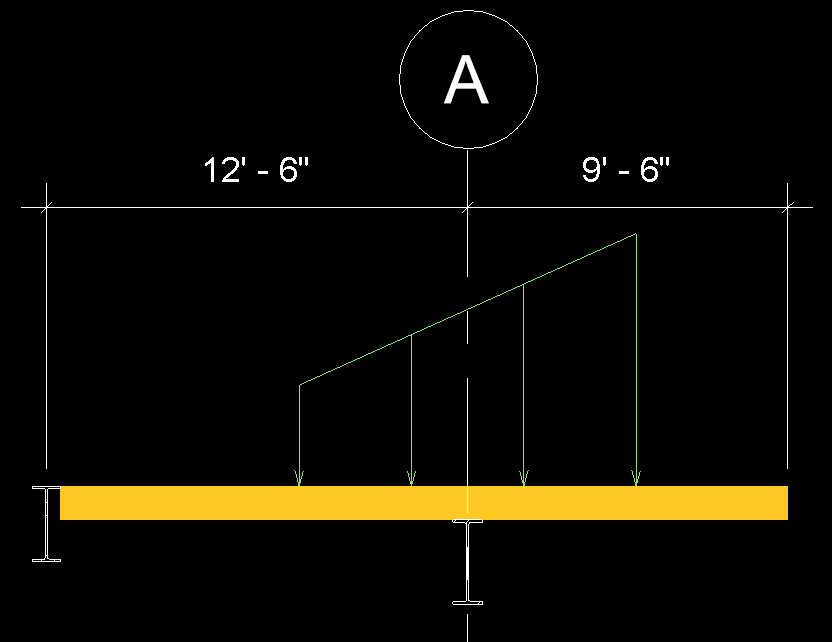

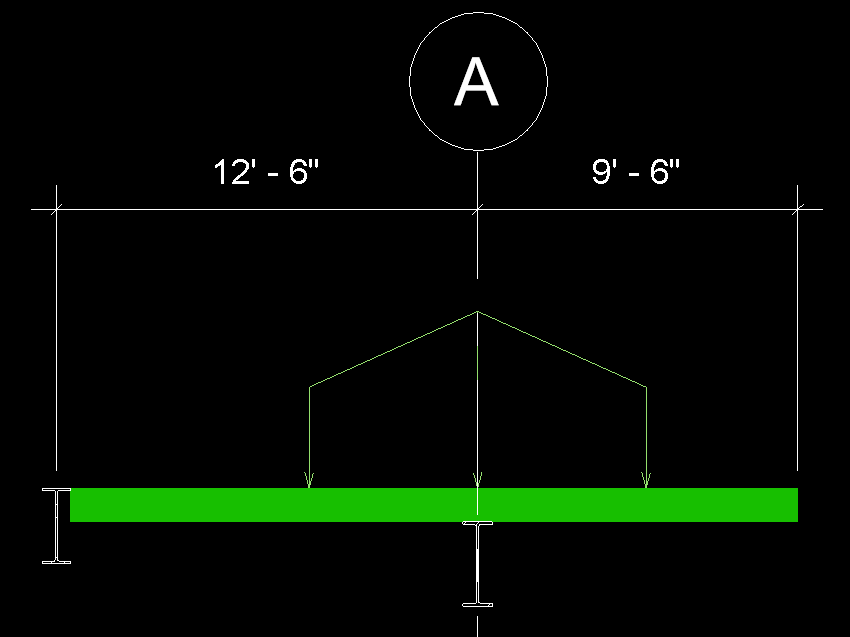

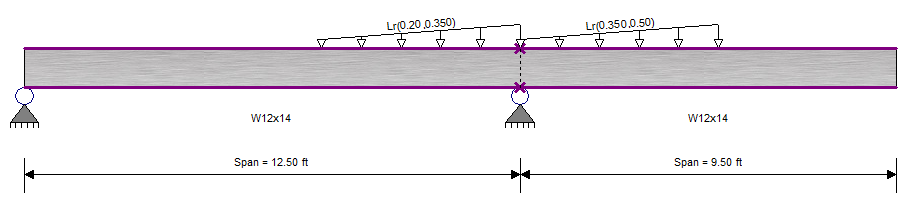

Linear loads (either hosted or non-hosted) may be modified from the SEL interface without any restrictions.  Any changes to magnitude, location, cases, etc. will be automatically translated directly to the Revit model when the “Save and Close” operation is completed.  Note that modifying the “Tributary Width” property of the linear load will cause the calculated equivalent linear load magnitude to be stored in the Revit model.  It will not result in creation of an actual area load.  Note also that in situations where a multi-span load has been interpolated across a support location, modification of the load properties will necessitate the load being returned to Revit as individual loads on the respective spans.
