Navigation:  Working With Beam Calculations > Beam Parent / Child Relationships > Change Warnings > Change Warnings from Removal of Child Elements

NOTE:  For parent/child management, the terms “Add” and “Remove” describe the creation or removal of a conceptual relationship between the parent element and another existing element in the Revit model.  These controls do not create or delete actual elements in the Revit model or calculations in the .EC6 file.

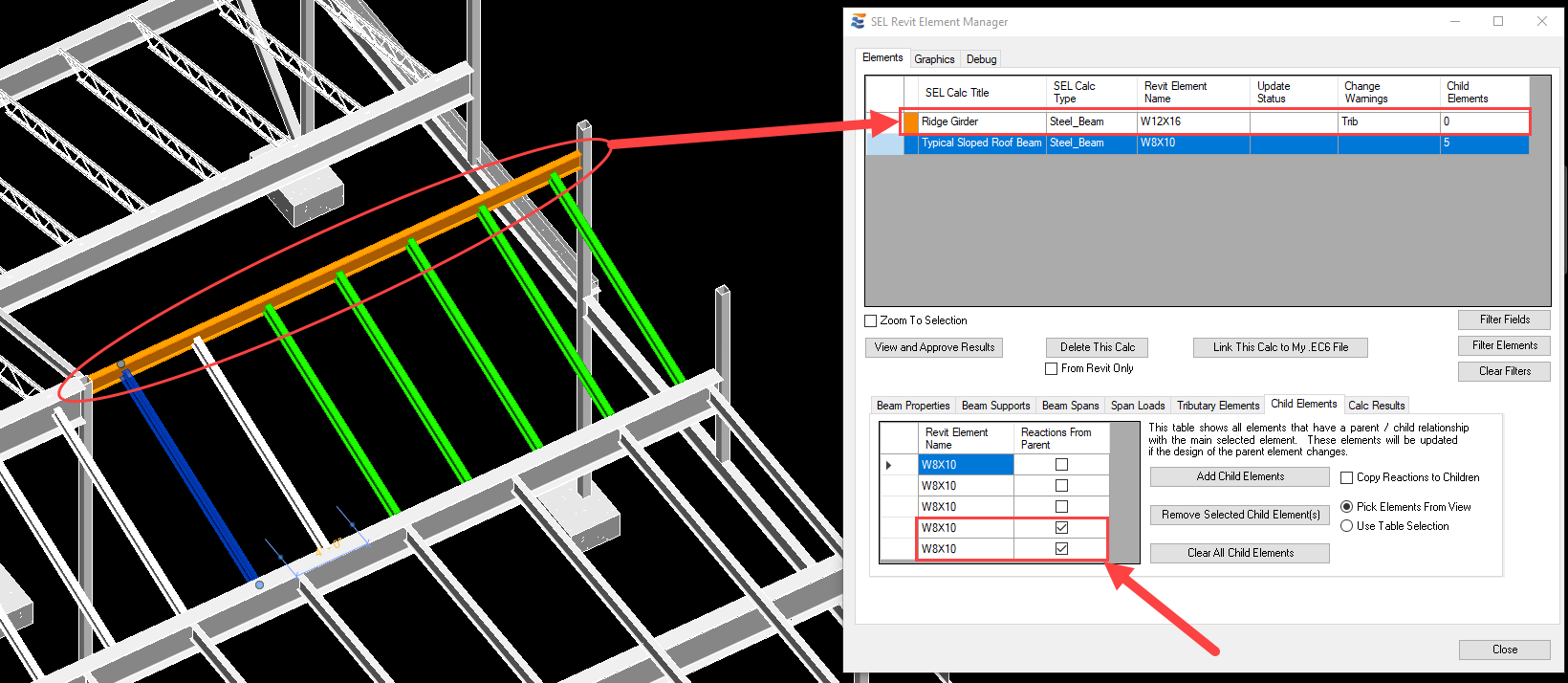

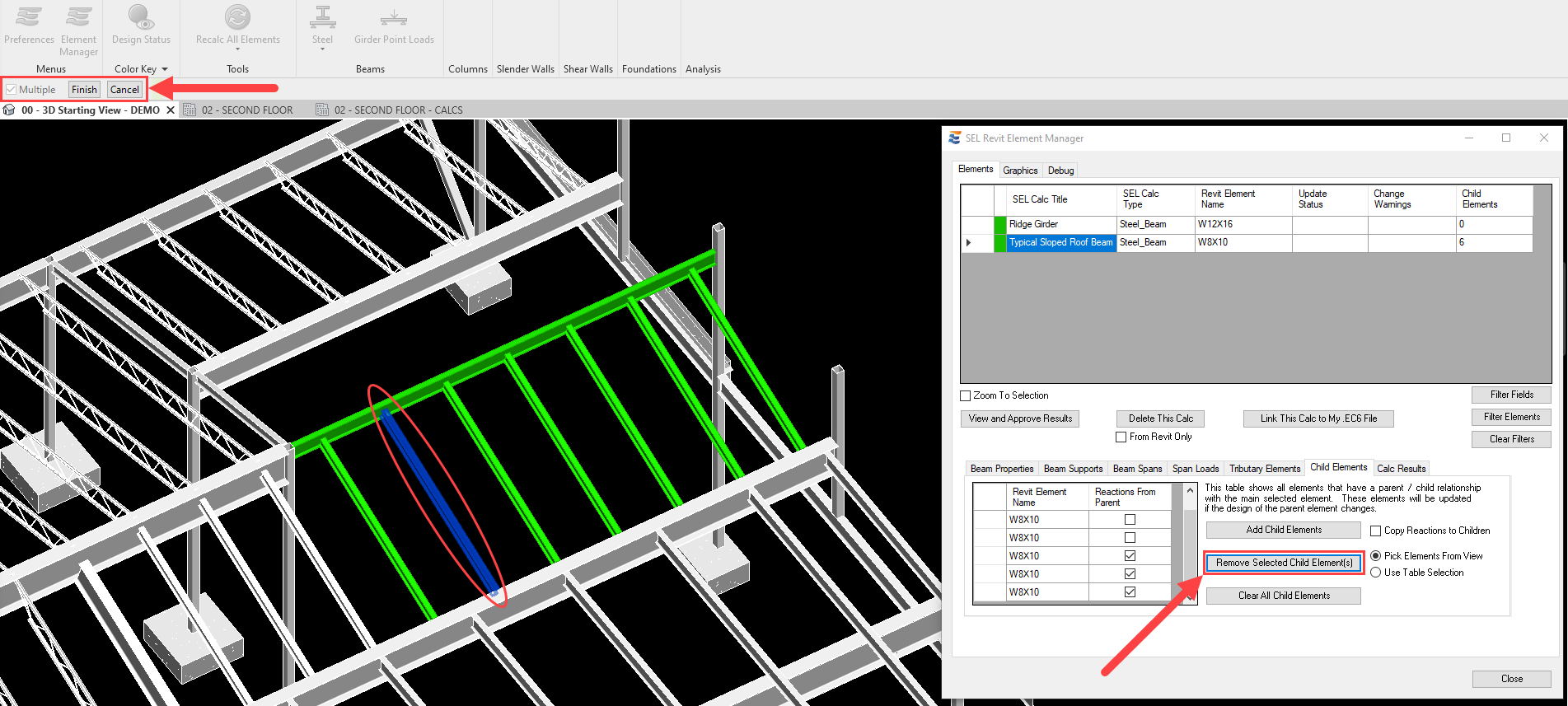

Once a girder has been designed using the reactions exerted by “Load-Linked” child elements, it will also be subject to warnings in the future if one of the parent/child relationships is removed.  Removal of a child that does not carry reactions has no effect, but removal of a “Load-Linked” child will trigger a warning state (orange) on the girder similar to that caused by adding a new child, as shown previously.
