The Global Coordinate System in ENERCALC 3D is a Cartesian system of X, Y and Z axes:



•Follows right-hand rule where Z cross X equals Y.

•Y axis is typically considered "up" in ENERCALC 3D ("Y to the sky").

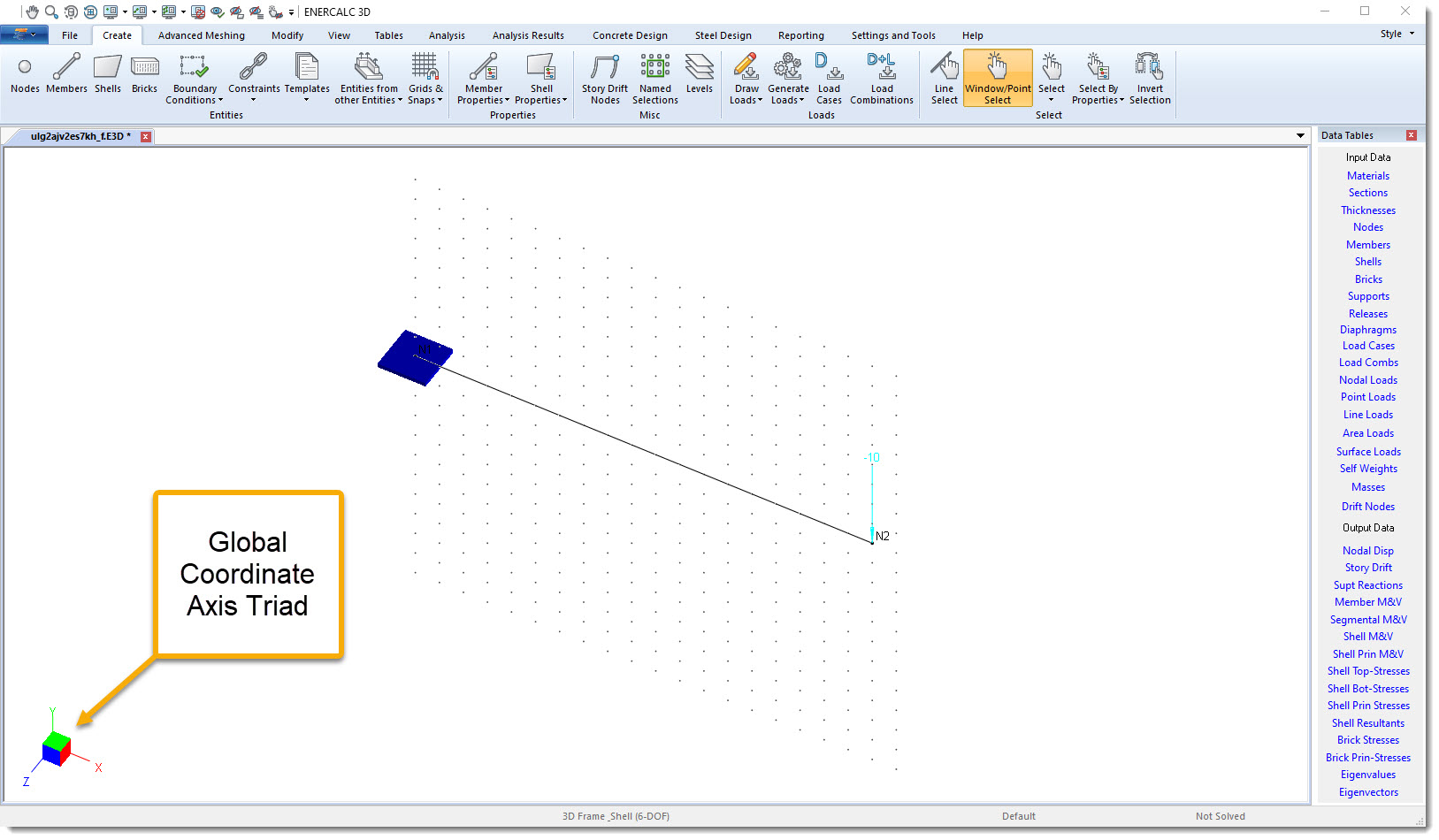

•Axis triad is color coded to help with visualization, and coordinates with the view orientation buttons on the View toolbar:

 X = Red

 Y = Green

 Z = Blue





•Axis triad shows positive directions of all three axes, and algebraic sign is important!

•Global coordinate axis will be useful for specifying model geometry, specifying loads, and interpreting results.
