Navigation:  Project Manager > Calculation List > Sorting by Division, Type, Material & Calc Order

Select the "Division", "Material", "Type" or "Calc Order" tab to sort the calculation list based on these three primary organizational hierarchies.

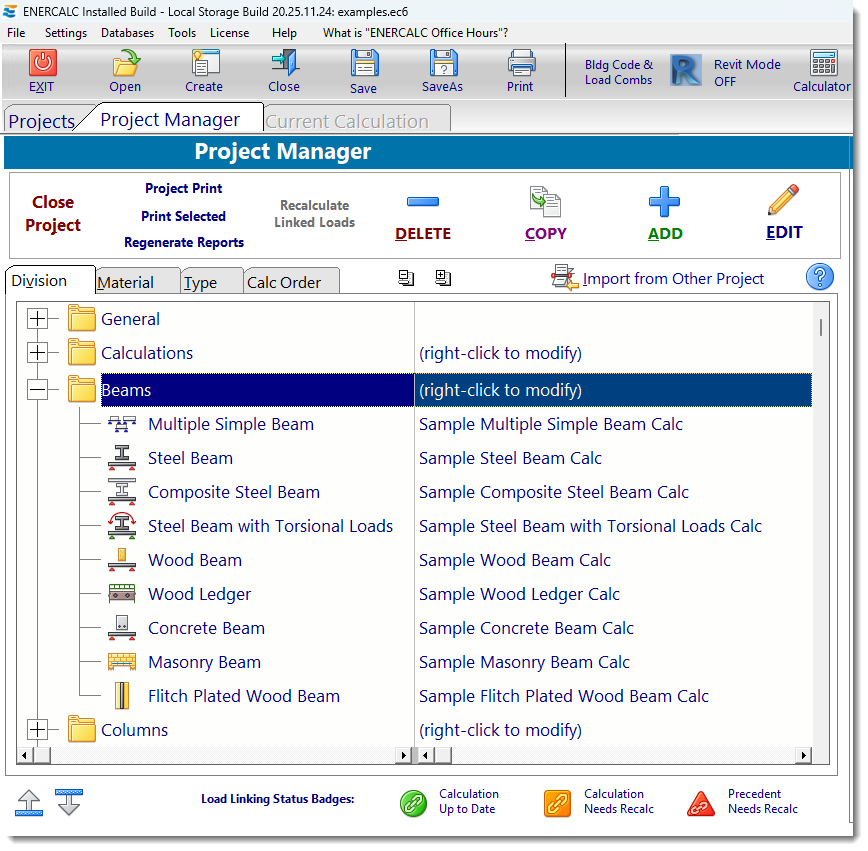

Division: Organizes the calculation list by the Divisions you created, and sorts the calculations within each Division in the order that you established. See below.

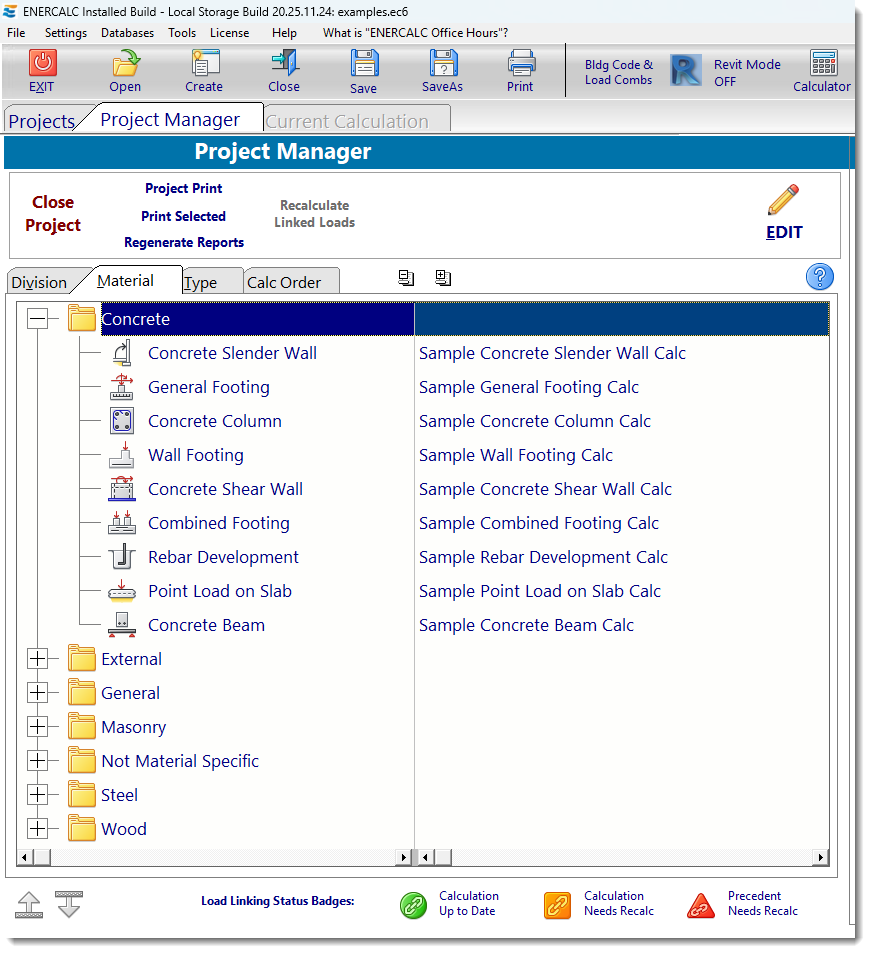

Material: Organizes the calculation list by the materials to which they refer, and sorts the calculations within each material in the order that you established. See below.

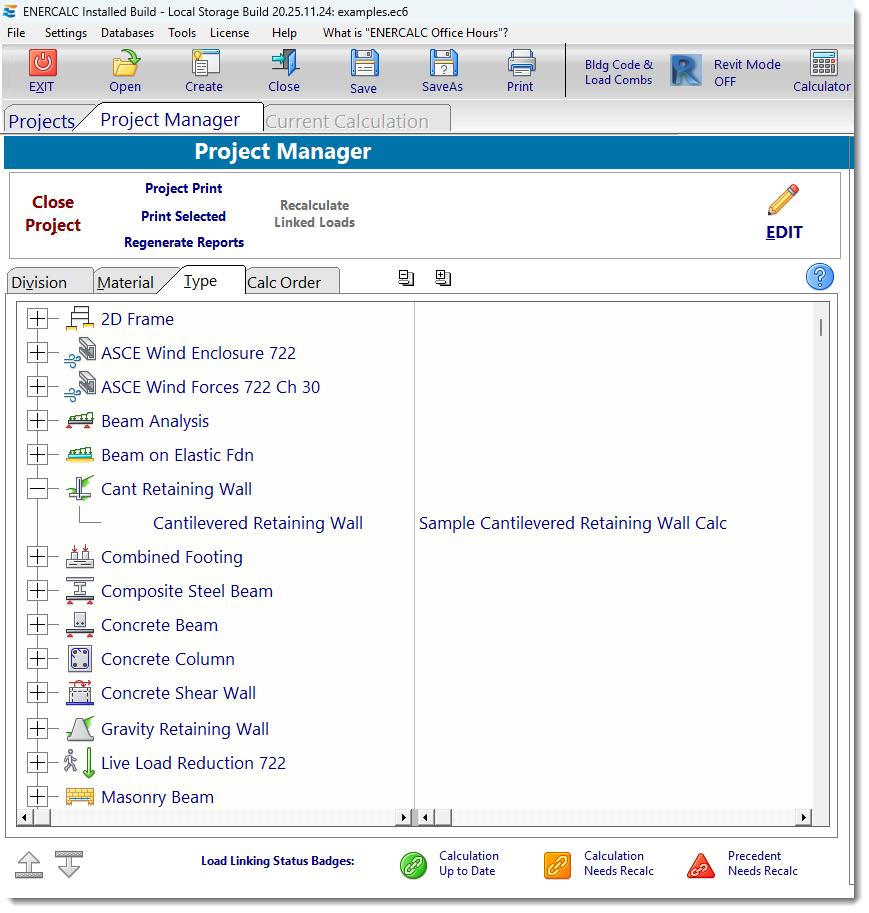

Type: Organizes the calculation list by calculation type, and sorts the calculations within each type in the order that you established. See below.

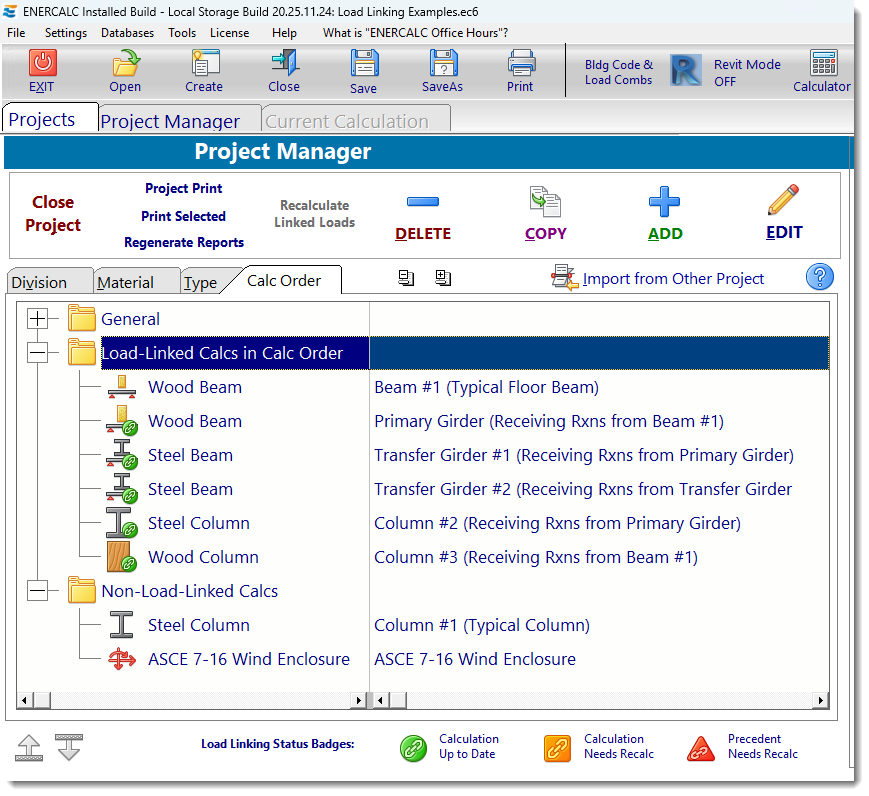

Calc Order: Organizes the calculation list in the sequence they appear within the load path, with precedent calculations listed at the top and dependent calculations appearing towards the bottom. Non–load-linked calculations are grouped separately from load-linked calculations and are not sorted. See below.



Click here to review the specific section on Linked Loads.
