Objective

To verify the combined behavior of compatible membrane and beam elements



Problem Description

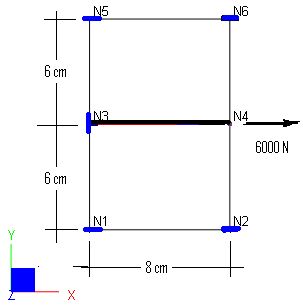

An 8 x 12 cm plate is fixed on three sides.  It is reinforced with a bar element in the middle as shown below.  The free end of the bar is subjected to a horizontal force of 6000 N.



Material properties: E = 30e6 N/cm2, ν = 0.30



Plate thickness t = 0.1 cm



Bar cross sectional area = 1 cm2





Finite Element Model

2 shell elements + 1 beam element

Model type: 3D Frame & Shell (use compatible membrane formulation)



Results

The tip displacement of the bar given by ENERCALC 3D is compared with that given by [Ref 1] as follows:

Unit: displacement - cm





Comments

The result given by ENERCALC 3D is identical to the referenced value.



Reference

[1]. Bathe, “Finite Element Procedures”, pp361, Prentice-Hall, Inc., 1996
