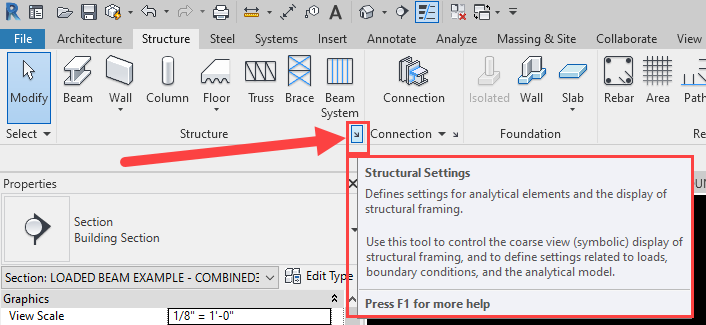

Load are managed and mapped from Revit to ENERCALC SEL using the basic load cases that are created using the default Revit structural template.  These cases may be viewed at any time using the native Revit button for Structural Settings on the Structure ribbon tab.

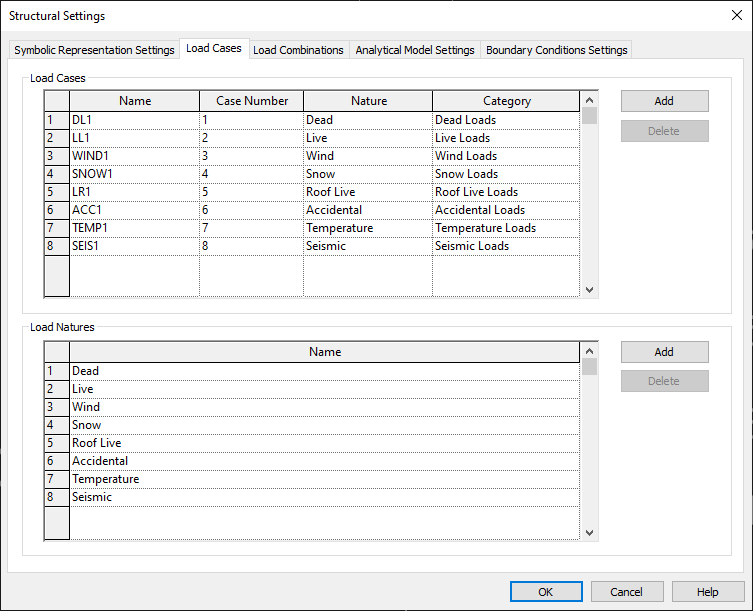

Load cases are found under Structure > Structural Settings > Load Cases.  These are default settings and typically do not need to be manually created or modified in any way.  Changing the default settings will interfere with the mapping of loads to the ENERCALC SEL calculation.  In the table shown here, all load cases are mapped directly to the corresponding case in ENERCALC SEL, with two exceptions:

•ACC1 maps to earth load (H) in ENERCALC SEL

•TEMP1 is ignored and does not map to any case in ENERCALC SEL

Load combinations are managed exclusively from the ENERCALC SEL interface.  Load combination definitions found in the Revit model will not influence the design calculations in any way.
