Navigation:  Working With Beam Calculations > Monitoring and Change Warnings > Deleting Designed Elements

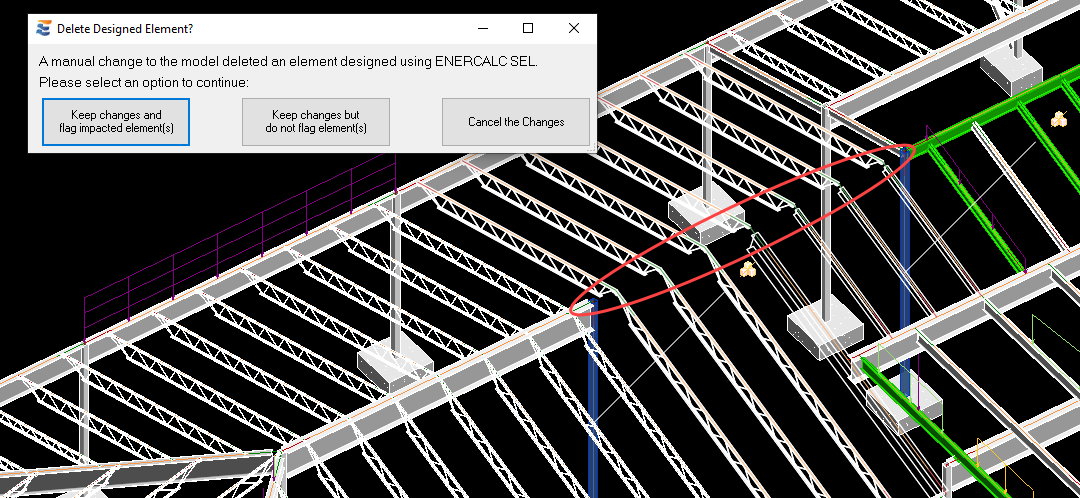

Deletion of a beam designed using ENERCALC for Revit will result in a change warning.  If working in “Real-time” monitoring mode, this will result in a pop-up notification to the user.  When the pop-up notification is presented, the user has 3 choices.

The first button will proceed with removing the element.  This will cause all other impacted element(s) (i.e., supported elements, supporting elements with “Load-Linking” relationships, etc.) to be placed in a warning state (orange) and a description of the change will appear in the Element Manager.  The second button will preserve the change committed by the user, but will not create any warnings on the impacted element(s).  The third button will undo the preceding change that triggered the notification.

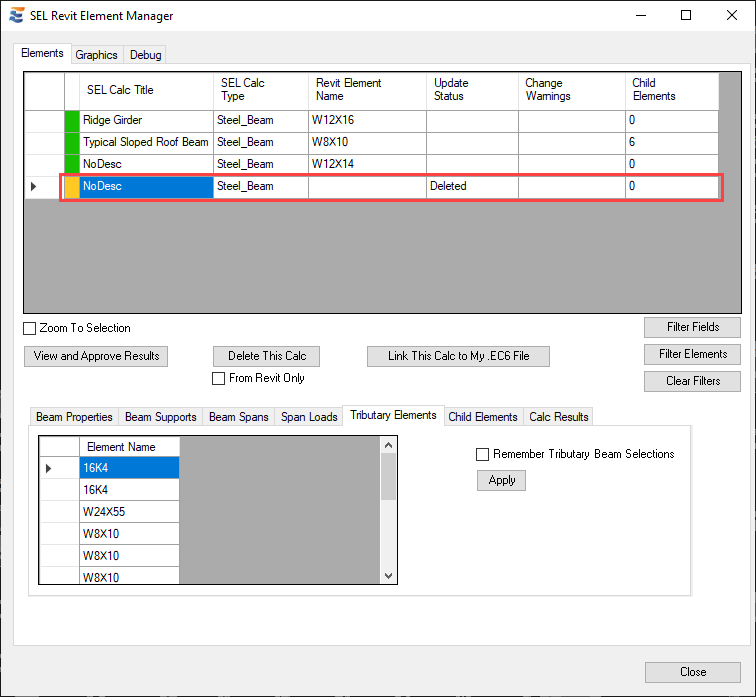

If the change is kept, the Element Manager summary table will contain a line item showing the deleted element, even though it no longer exists in the model.  Deleted element line items can still be selected, and limited information may be viewed after deletion.
