Changes to Supports |
|
Changes to the supports of a beam designed using ENERCALC for Revit will result in a change warning. This includes changes such as the following:

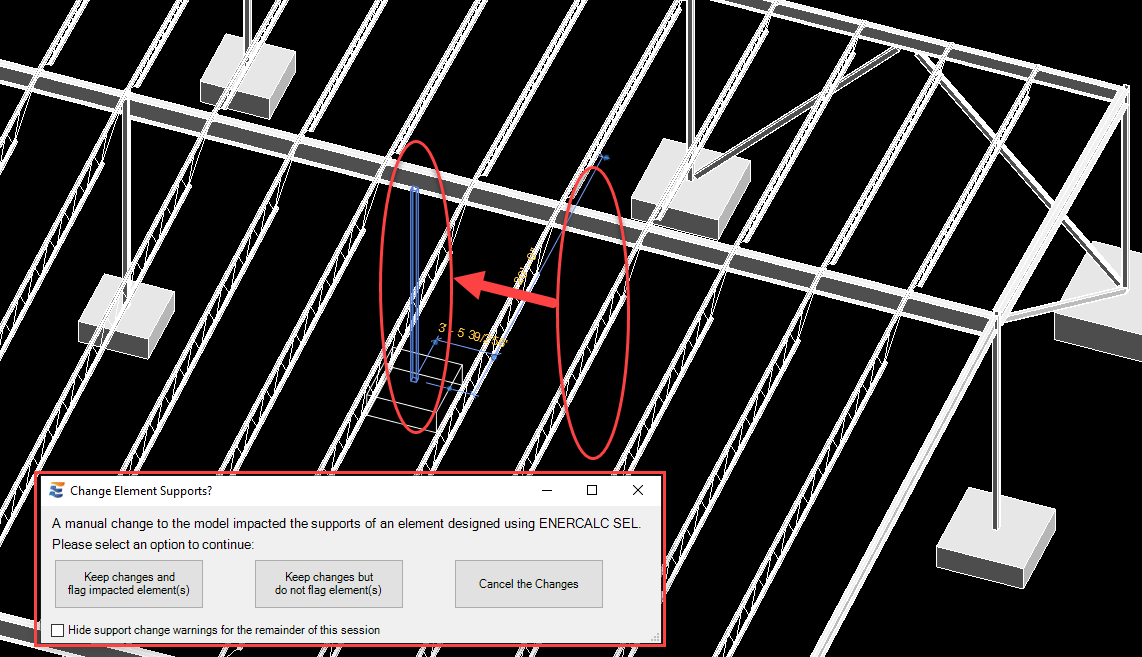

•Shifting a beam’s support

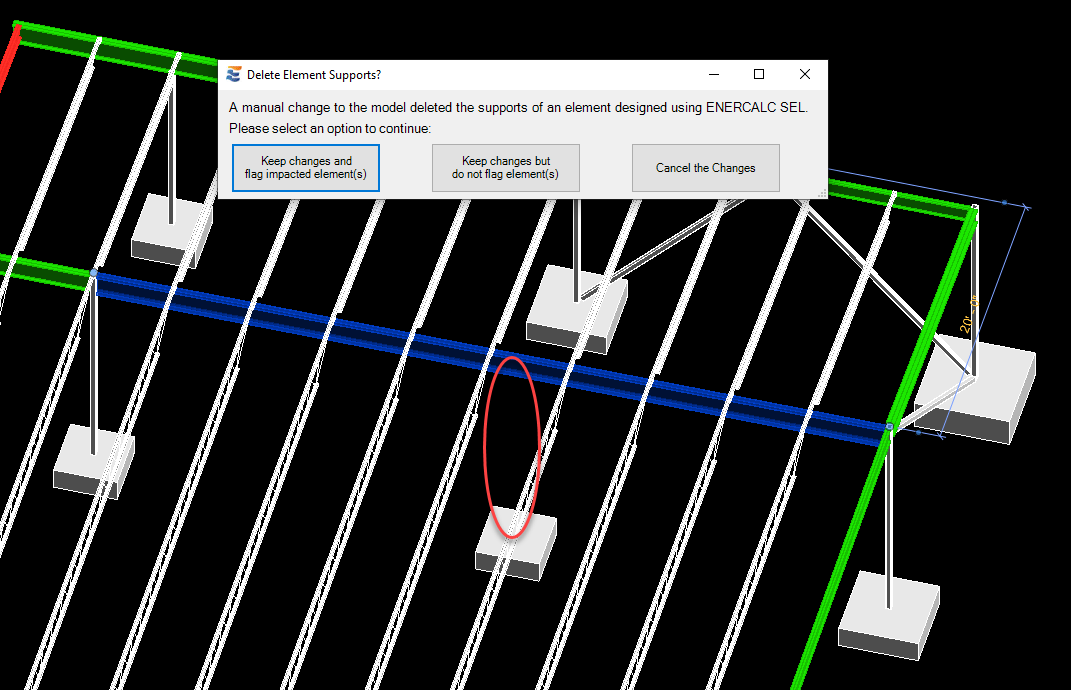

•Deleting a beam’s support
If working in “Real-time” monitoring mode, these changes will result in a pop-up notification to the user. As with other types of pop-up notifications, the user is presented with 3 choices.

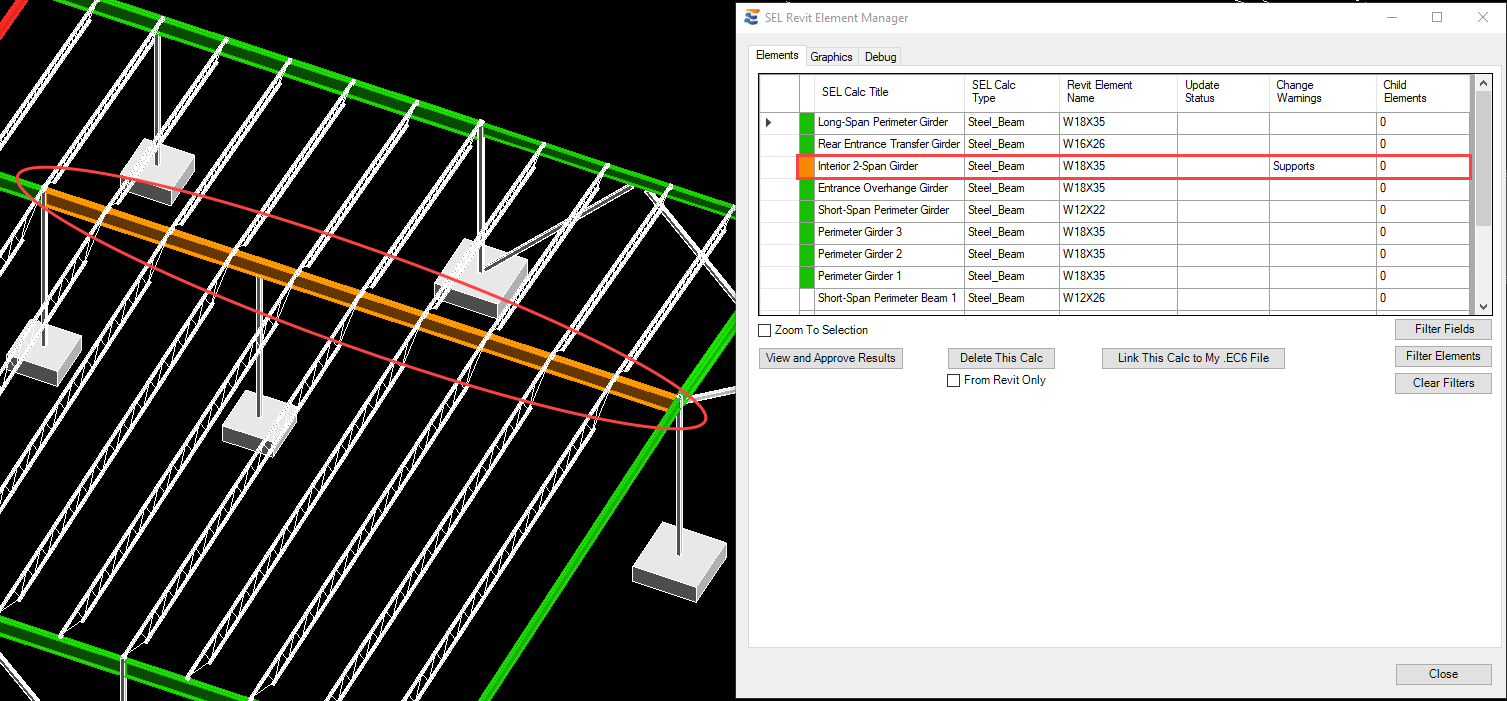

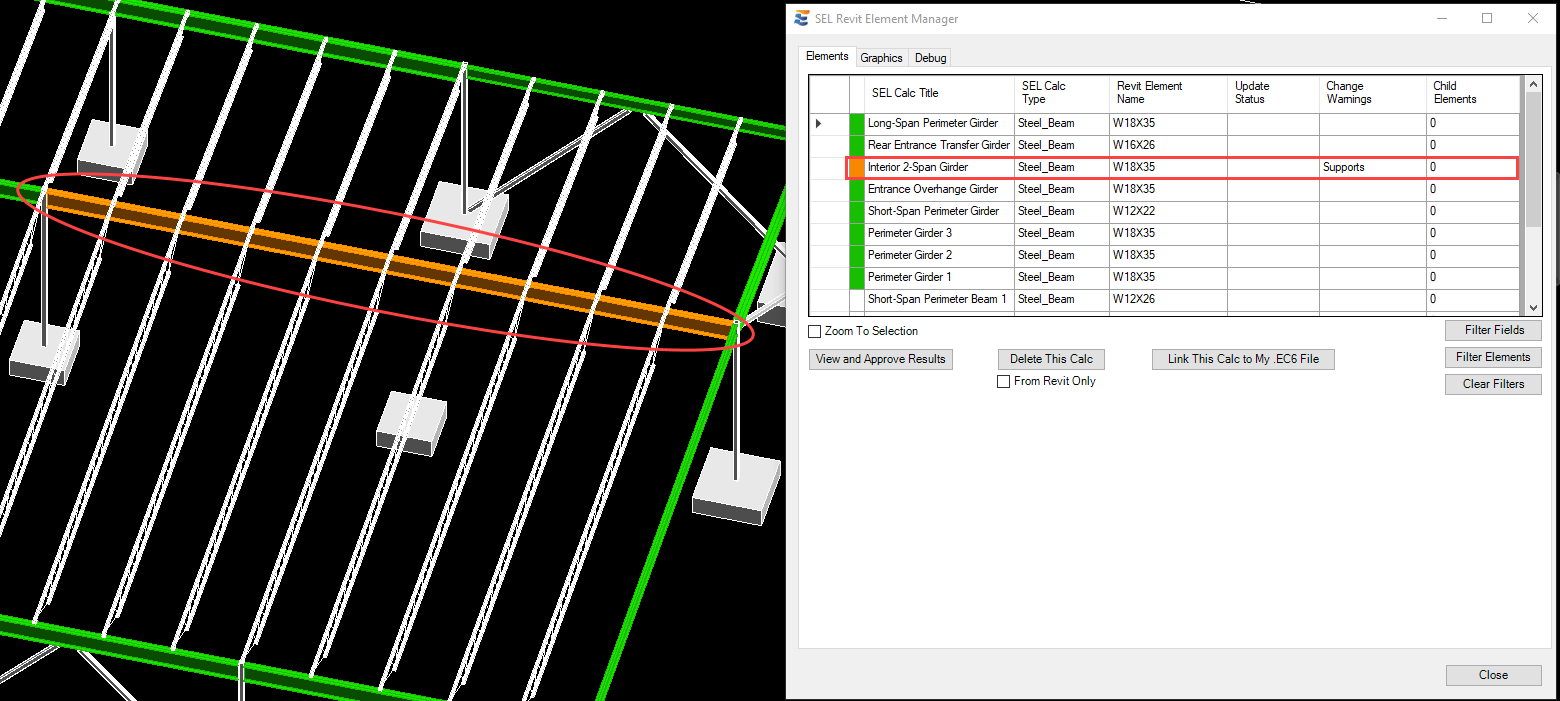

Regardless of whether a change was accompanied by a pop-up, all changes are noted in the Element Manager summary table and via element highlighting.
Regardless of whether a change was accompanied by a pop-up, all changes are noted in the Element Manager summary table and via element highlighting.
<
