Sub-Mesh Shells

 Previous pageReturn to chapter overviewNext page

Modify > Sub-Mesh Shells subdivides the selected shell(s) by using the user-specified number of segments along both edges of the shell(s).

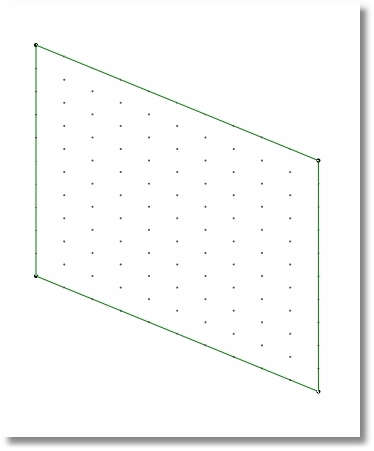

mesh shells start

leads to

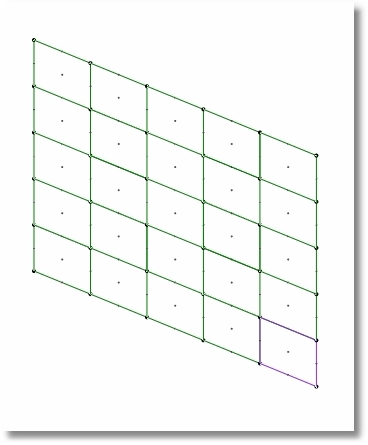

Mesh shells end



Remember that node numbers can be turned on for reference by clicking View > Display Options > Shell Display Options > Shell Number, or by using the Shell display options button button on the Quick Access Toolbar.



To relate node numbers to the reference corners 1 through 4 of a selected shell, click Tables > Shells.
