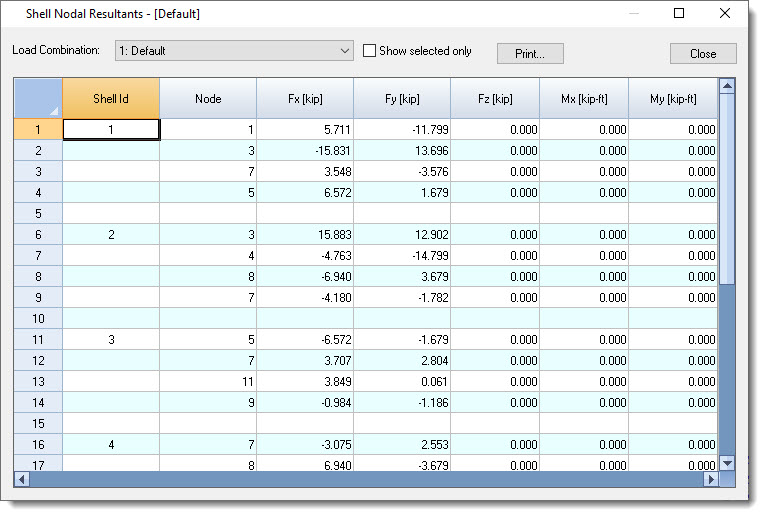

Click Analysis Results > Shell Forces, Moments & Stresses > Shell Nodal Resultants to see a table of shell nodal resultants.  The Shell Nodal Resultants table appears.





Select the desired Load Combination.



Choose whether the table should display results for the selected entities or for all entities.



The table reports the forces and moments required to keep the shell in equilibrium. The values are expressed in the local coordinate system.
