Navigation:  Concrete Design > Concrete Design Diagrams > RC Member Envelope Diagram

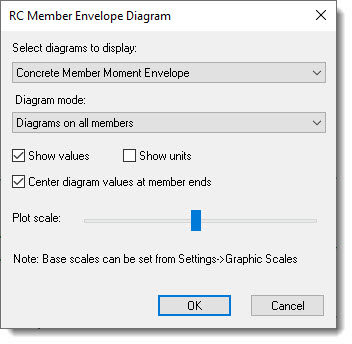

To view member diagrams on the screen click Concrete Design > Concrete Design Diagrams > RC Member Envelope Diagram.  The RC Member Envelope Diagram dialog opens.

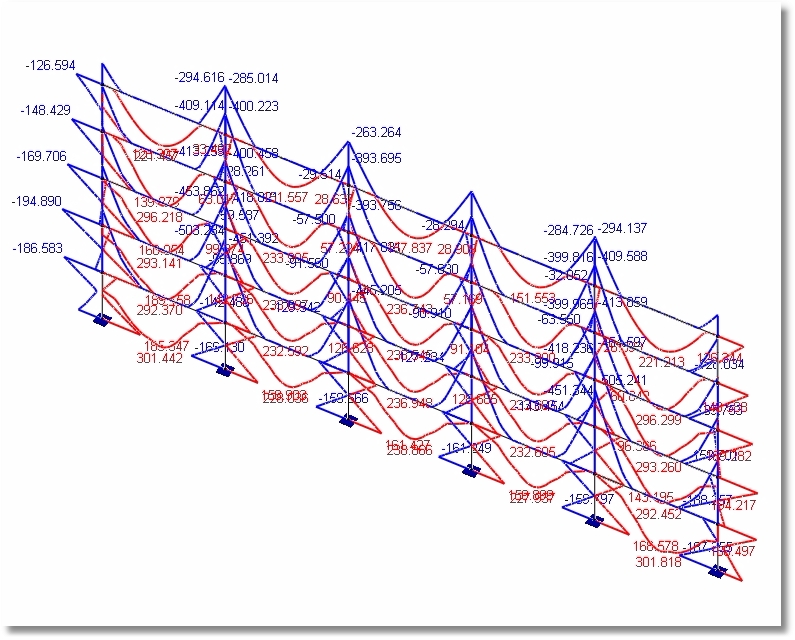

Remember that these are envelope diagrams.  They are not specific to any one load combination.



Select Diagram to Display:  Select from Concrete Member Moment Envelope, Concrete Member Shear Envelope, Required Flexural Reinforcement, or Required Shear Reinforcement.



Diagram mode:  Options include Diagrams on all members, Diagrams on selected members, or Erase existing diagrams.



Miscellaneous options include: Show values, Show units, and Center diagram values at member ends.
