Navigation:  Concrete Design > Concrete Design Output > RC Column Results

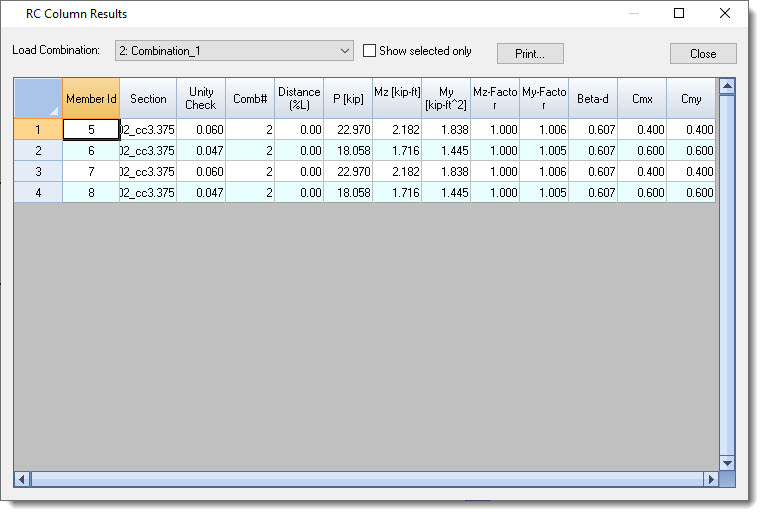

Click Concrete Design > Concrete Design Output > RC Column Results to open the RC Column Results table.





This table reports design results for each column member.



Tip: This table only reports results for the controlling load combination for each column. The Load Combination selector is provided in this table only as a convenience to help the user relate the load combination number to the actual load combination itself.



Section:  A descriptor generated by the program that uniquely identifies the reinforcing pattern used.



Unity Check:  The highest utilization ratio for all load combinations used in concrete design.



Comb:  The load combination that produces the highest utilization ratio.



Distance:  The location along the length of the member where the highest utilization ratio occurred.  A value of zero indicates the starting end of the member.  A value of 1.0 indicates the ending end.  A value of 0.25 means 25% of the way from starting node to ending node.



P: The design axial load at the specified distance.



Mz: The design strong axis moment at the specified distance.



My:  The design weak axis moment at the specified distance.



Mz Factor: The B1 moment magnification factor for Mz.



My Factor: The B1 moment magnification factor for My.



Beta d:  The ratio of maximum factored axial sustained load to maximum factored axial total load.  The factor Beta d accounts for the effects of creep.  Generally:



Cmx and Cmy:  The Equivalent Moment Factor:



Cm = 1. 0 if M1 = 0 or M2 = 0



Cm = 1. 0 if transverse load exists



If only end moments exist, then:
