Navigation:  Concrete Design > Concrete Design Output > Member Shear Results

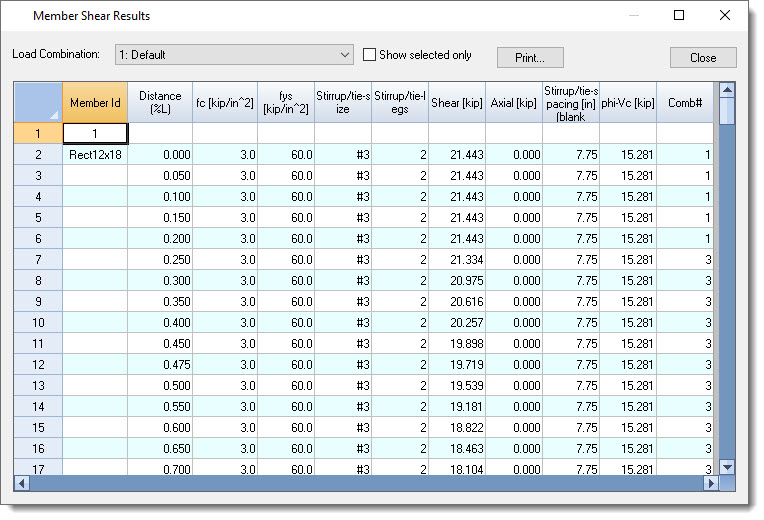

Click Concrete Design > Concrete Design Output > Member Shear Results to open the Member Shear Results table.





This table reports shear design results for each member.  Beam shear is based on the shear envelope, so results for specific load cases are not available.



Member ID:  Lists the member number and indicates the section used for the member.



Distance:  Reports incremental locations along the member, starting at the starting end and ending at the ending end.



fc:  The compressive strength of concrete.



fys: The yield strength of the shear reinforcing.



Stirrup/Tie Size:  The size of the stirrup or tie.



Stirrup/Tie Legs:  The number of legs per stirrup or tie.



Shear:  The design shear force to be resisted.



Axial:  The design axial force.



Stirrup/Tie Spacing: The spacing of stirrups or ties.



phiVc: The shear strength of the concrete only.
