Modify > Move acts on selected nodes and allows them and their connected members, shells and bricks to be moved by the specified X, Y, and Z distances.



It has an option to allow nodes and elements to be merged.  When the option is selected to Merge nodes and elements, if a copied node, member, or shell falls exactly on top of another node, member, or shell, the program will automatically eliminate the duplicate to avoid problems with model geometry.

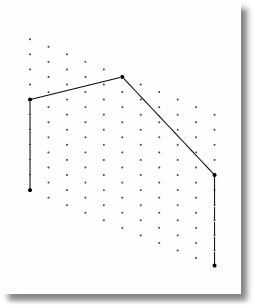

Move start

leads to

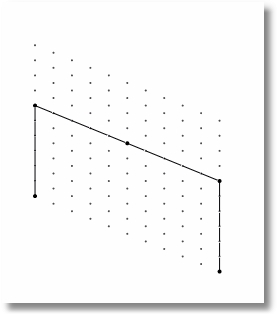

Move end
