Navigation:  Reviewing the Analysis Results > Member Segmental Results

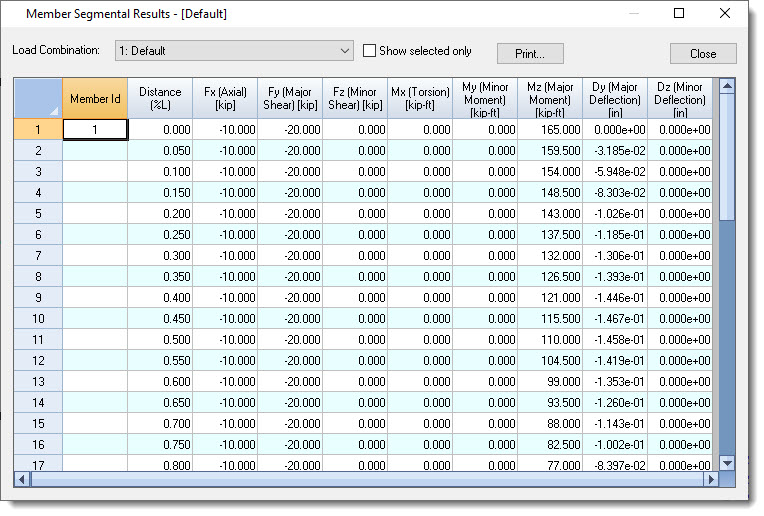

Click Analysis Results > Member Segmental Results to see a table of member forces and moments at small increments all along the length of the members.  The Member Segmental Results table appears.





Select the desired Load Combination.



Choose whether the table should display results for the selected entities or for all entities.



The table reports shears, moments, torsion and axial force at many incremental locations along the length of the desired members.



The table can be printed with the Print button.
