Story Drift Nodes

 Previous pageReturn to chapter overviewNext page

Last revised: Thursday, January 29, 2026 at 02:49 PM

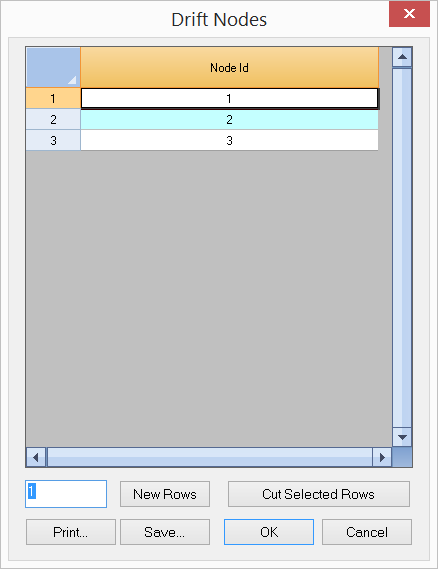

Create > Story Drift Nodes prompts you with the following dialog.



FASTFR~1_img161





It allows you to enter nodes that will be used for floor drift calculation.  An empty row is allowed if all rows below it do not contain any non-empty fields.  Selected rows (whole row must be selected) may be cut by clicking the button “Cut Selected Rows”.

< <
