Nodal Displacements

 Previous pageReturn to chapter overviewNext page

Last revised: Thursday, January 29, 2026 at 02:55 PM

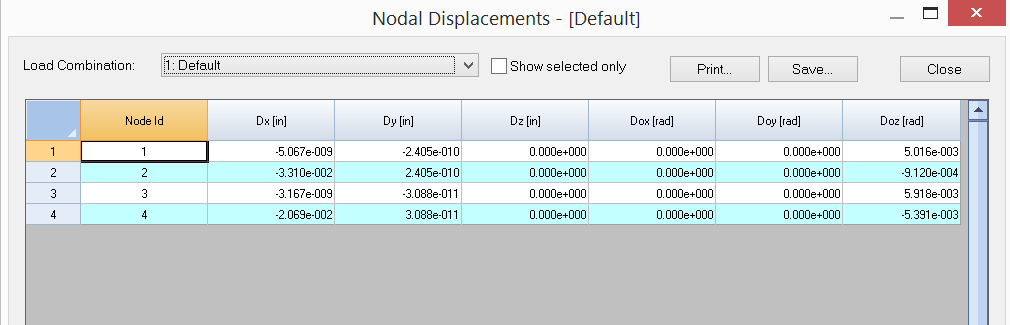

Analysis Results > Nodal Displacements displays the following dialog.



FASTFR~1_img168





It allows you to view nodal displacements for each load combination.  The displacements for each node include three translational components Dx, Dy and Dz and three rotational components Dox, Doy and Doz.  You have the option to view the displacements for the selected nodes only.

< <
