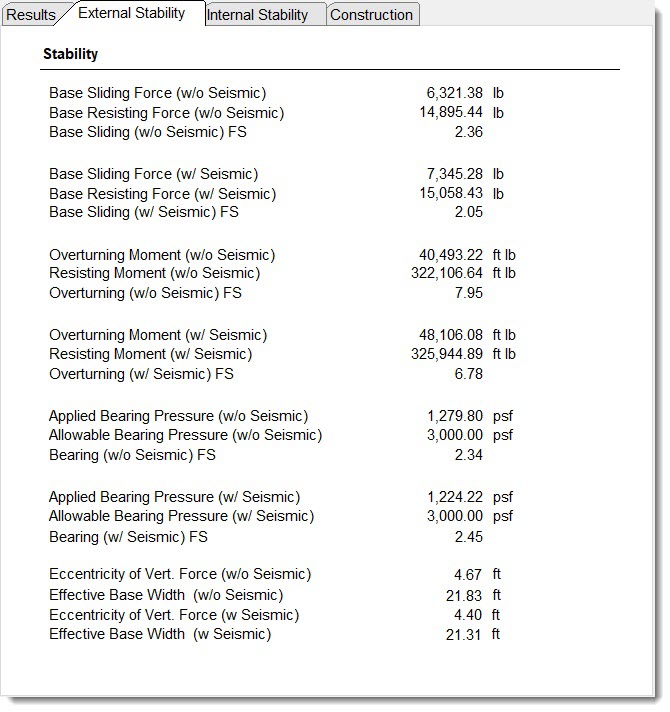

Displays overturning and sliding factors of safety as well as bearing pressure results for conditions with and without seismic loading.



Also reports eccentricity of vertical force and effective base width.
