Modal Shell Forces & Moments

 Previous pageReturn to chapter overviewNext page

Last revised: Thursday, January 29, 2026 at 02:56 PM

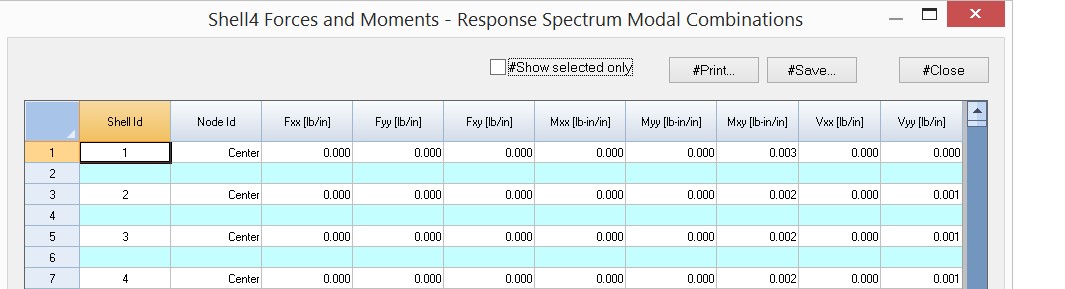

Analysis Results > Dynamics > Modal Shell Forces & Moments displays the following dialog.



clip0016_was_BMP





It allows you to view shell forces and moments in modal combinations (including directional combinations). You must perform response spectrum analysis beforehand.

< <
