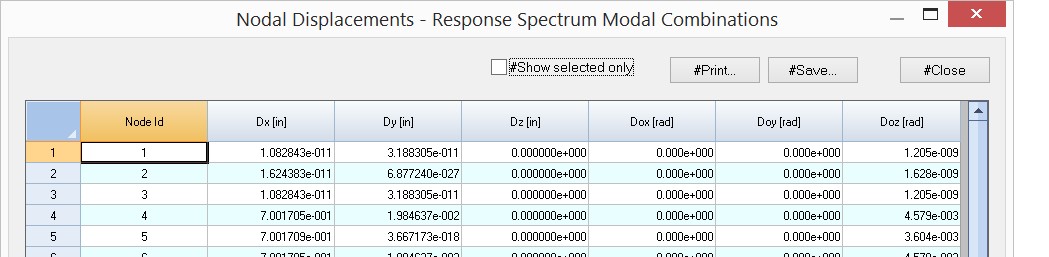

Analysis Results > Dynamics > Modal Nodal Displacements displays the following dialog.







It allows you to view nodal displacements in modal combinations (including directional combinations). You must perform response spectrum analysis beforehand.
