Steel Materials

<< Click to Display Table of Contents >>

Navigation:  Ribbons > Steel Design >

Steel Materials

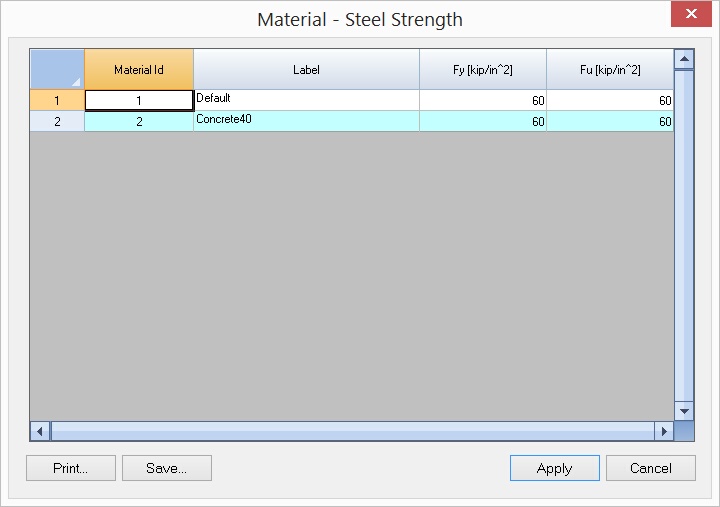

Steel Design > Steel Materials prompts you with the following dialog.



clip0001





It allows you to define steel strength properties for the existing materials.  The strength properties include:

Steel yield stress Fy

Steel rupture stress Fu



If standard materials are used in Tables > Material Data, these strength properties will be set automatically.  You may override these properties prior to performing steel design.  No steel design will be performed on a member if its modulus is not close (within 10%) to 29E3 ksi.  You should not modify materials that are not steel on this dialog.
