Navigation:  Concrete Design > Concrete Design Output > RC Analysis Envelope

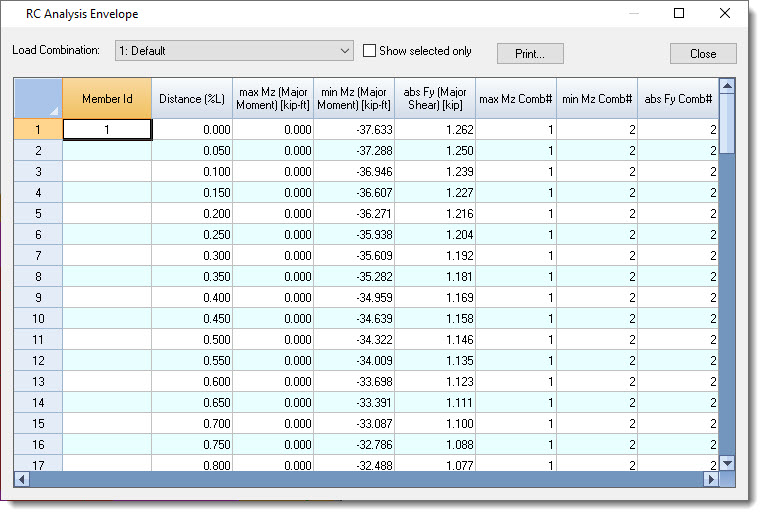

Click Concrete Design > Concrete Design Output > RC Analysis Envelope to open the RC Analysis Envelope table.





After selecting the desired load combination, this table reports forces and moments at small increments along the length of the member.



Max Mz:  Maximum moment about the strong axis of the member.



Min Mz:   Minimum moment about the strong axis of the member.



Abs Fy:  Absolute value of the major axis shear in the member.



Max Mz Comb:  Load Combination that produces the maximum moment about the strong axis of the member.



Min Mz Comb:   Load Combination that produces the minimum moment about the strong axis of the member.



Abs Fy Comb:  Load Combination that produces the absolute value of the major axis shear in the member.
