Merge All Nodes & Elements

Previous pageReturn to chapter overviewNext page

Modify > Merge All Nodes and Elements looks through the model to see if there are any duplicate nodes, members, shells or bricks.  If it finds any, it consolidates them so there are no longer multiples in exactly the same spot, as that would have detrimental effects on model performance.

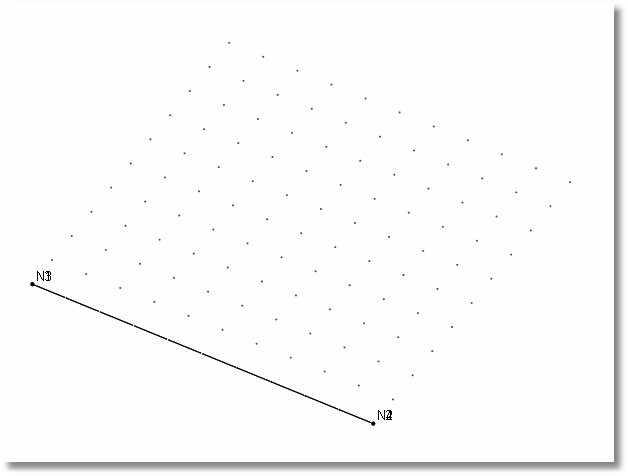

Merge start

leads to

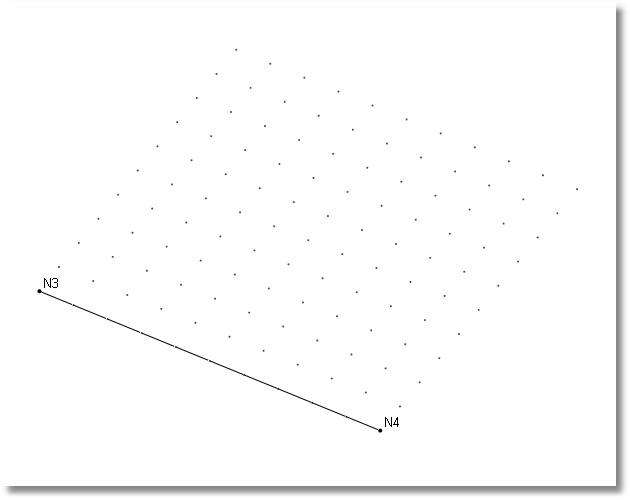

Merge end
